Sound Card Interface for the TS-2000

A interface specifically built for the TS-2000

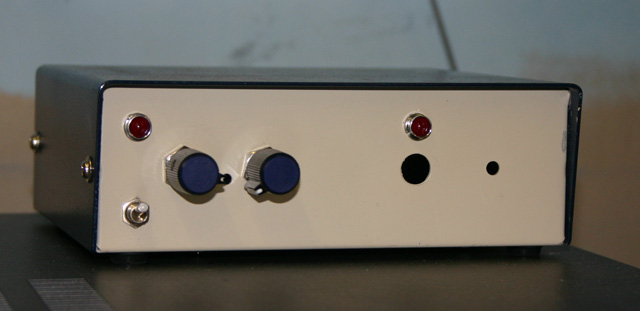

Housed in an old printer A/B switch Box

This little interface box has a cable that plugs directly into my TS-2000 11 pin DIN plug. It is completely electrically isolated from the computer. Besides the sound card interface it also has a CW zero beat indicator, and a switch that lets me switch between the audio out from the rig to the 12 Khz IF that I added to pin 6 of the ACC2 connector on the back of the TS-2000

The pots allow me to adjust the audio level to and from the rig.

This box allows me to use most of the digital modes on my TS-2000
